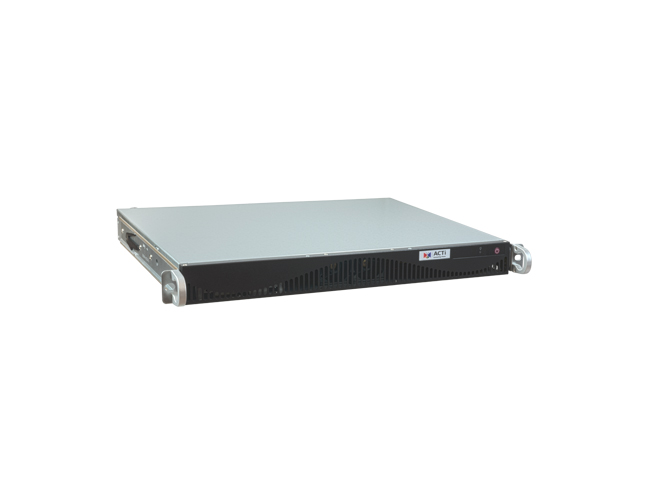

LPR-120 - 6-Channel 1-Bay ALPR Rackmount Standalone IVS
by ACTi
|
|
|
|
- Concurrent analysis of up to 6 channels for Automatic License Plate Recognition
- One region of interest per channel
- Searching and filtering based on time and vehicle color
- Convenient plate numbering searching
- Analysis for live and pre-recorded videos
- Blacklist and whitelist notification
|
|
|
LPR-120 is
a 6-Channel 1-Bay ALPR Rackmount Standalone IVS with DVI, VGA and Display port for 1080p Display, Remote Access, Video Export via USB, 1-channel free license included, Supports External Storage (USB), 1-Bay (Without Storage Disks), Audio, AC 100-240V
Device |
LPR-120 |
Product Type |
Standalone IVS |
Maximum Resolution |
Support all ACTi cameras in all resolutions |
Product Application |
License Plate Recognition |
Maximum Number of Video devices |
6 |
Hardware |
|
CPU |
Intel Core i7-4770S |
RAM |
8GB |
License |
|
License required |
Yes |
Free License |
1 |
Video |
|
Compression |
H.265, H.264, MPEG-4, MJPEG |
Built-in Analytics |
License Plate Recognition, Speed Estimation, Vehicle Counting, (Some of the algorithms may not be available in the first release, can be upgraded for free later) |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of concurrent channels or algorithms. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Mic-in, Line-out |
Network |
|
Ethernet Port |
Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
Video Analytics |
|
Analyzed Stream |
Live View, Playback |
Analyzed Source |
NVR, Camera, pre-recorded video |
Report System |
|
Report System |
Standard Report |
System |
|
Server Operating System |
Embedded Windows 7 |
USB |
2 port(s), USB 2.0, 2 port(s), USB 3.0 |
Language |
Multi-Language, English, Traditional Chinese |
Integration |
|
Unified Solution |
Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
Supported Countries |
Australia / Austria / Bulgaria* / Canada / Costa Rica / Czech Republic / Denmark* / Ecuador / Georgia / Germany / Greece / Guatemala / Hong Kong / Hungary / Indonesia / Ireland / Italy / Japan / Jordan / Korea, South / Kuwait / Laos / Malaysia / Malta / Mexico* / Mongolia / New Zealand / Oman / Poland* / Romania / Russia / Saudi Arabia* / Slovakia / Spain / Switzerland* / Taiwan / Thailand / Ukraine / United Kingdom / United States / Vietnam* ( * To be available through future versions upgrade ) |
Interface |
|
Local Access |
DVI/VGA/Display port for monitor, Keyboard & mouse |
General |
|
Power Source |
AC 100-240V |
Power Consumption |
85 W (AC) |
Weight |
11420g (25.17lb) |
Dimensions |
Rack Space: 1U
(W x H x D): 290mm x 90mm x 232mm (11.4" x 3.54" x 9.13") |
Bundled Accessories |
Power cord |
Mount Type |
Rackmount rails(19", 26") |
HDD Bay |
SATA, Max. 1 2.5" Disk(s) (without storage disks) |
System Drive |
SSD, 120GB |
RAID Level |
No |
Fan |
Yes |
Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity |
10% - 85% RH |
Remote Access |
Workstation |
Approvals |
CE, FCC, UL (for built-in power adapter) |
|
|
