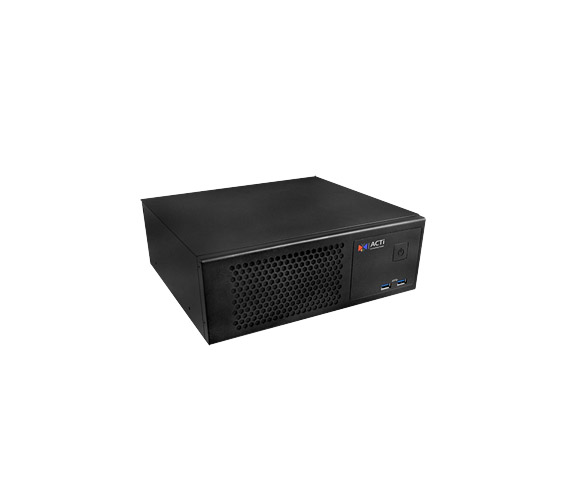

INR-100 - 16-Channel 1-bay Mini Standalone NVR by ACTi
|
|
|
- 1-bay Mini Standalone NVR
- Maximum Number of Video Devices: 64
- Free License: 16
- Additional Computing Power
- Video export formats: RAW, AVI, EXE
- Event trigger, response and notification
- Workstation, Web Client, Mobile Client
|
|
|
INR-100 64-Channel Mini Standalone NVR with Additional Computing Power
Device |
INR-100 |
Product Type |
Standalone NVR |
Maximum Resolution |
Support all ACTi cameras in all resolutions |
Maximum Number of Video devices |
16 |
Maximum Number of POS devices |
16 (requires additional license) |
Maximum Number of Access Control and Network I/O devices |
16 (requires additional license) |
Additional Computing Power |
Yes |
Maximum Number of Clients |
Local: 1, Remote: 5 |
Hardware |
|
CPU |
Intel Core i5-6500TE |
RAM |
8GB |
License |
|
License required |
Yes |
Free License |
16 |
Live View |
|
Display Layout Mode |
Local:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, Remote:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, Custom |
Local Live View performance |
Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
Digital Zoom |
Yes |
Event Status |
Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
Instant playback |
Instant Playback in live view window |
Web Controller |
Display and connect to pre-configured embedded website |
Map |
|
e-Map |
Yes |
Layout |
Area maps with camera icons, small live view windows, hyperlinked |
Setup |
e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O, Car Park |
PTZ Mode |
Mouse PTZ mode to control e-Map video streams |
PTZ |
|
PTZ Control |
PTZ Control, Speed Control, 32 preset points |
Joystick |
USB based joystick supported |
Video |
|
Compression |
H.265, H.264, MPEG-4, MJPEG |
Audio |
|
Audio Type |
2-way, Mic-in, Line-out |
Audio Compression |
PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi |
Ethernet Port |
Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
Recording |
|
Scheduled Recording |
Yes |
Event Recording |
Yes |
Manual Recording |
Yes |
Event Speed-up Recording |
Yes |
Dual Stream Management |
Yes |
Maximum Recording Throughput |
300 Mbps |
Search & Playback |
|
Playback Control |
Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop |
Synchronized Playback |
9 channels (Local), 16 channels (Remote) |
Recording Search |
Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download |
Smart Search |
Smart search of recorded video by Motion Detection and Tamper |
Video Export |
RAW, AVI, EXE |
Event |
|
Event Trigger |
[NVR]: Disk full, Disk not found, Disk is available, Schedule service start and stop, Video Push start and stop, CPU limit exceeded, [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss, Video Recovery, Network loss and recovery, [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status, Car park status, |
Event Response |
Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification |
System |
|
Permission control |
Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period |
Client PC Operating System |
Windows 10, Windows 8, Windows 7, Windows Server 2012, Windows Server 2008 |
Server Operating System |
Embedded Windows 7 |
Mobile Client Program |
Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, Supported device(s) iPhone, iPad, iTouch, Android device |
USB |
6 port(s), USB 3.0 |
Language |
Multi-Language |
Integration |
|
Unified Solution |
Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S |
Web Browser |
IE 10 or newer |
Third-party Integration |
Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license) |
Interface |
|
External Storage Interface |
eSATA, iSCSI |
Local Access |
HDMI/DVI/Display port for monitor, Joystick, Keyboard & mouse |
General |
|
Power Source |
AC 100-240V |
Weight |
3.2g (7.05lb) |
Dimensions |
(W x H x D): 255mm x 88mm x 215mm (10" x 3.46" x 8.46") |
HDD Bay |
SATA, Max. 1 3.5" Disk(s) (without storage disks) |
RAID Level |
Software RAID 0, 1 |
Fan |
Yes |
Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity |
10% - 85% RH |
Remote Access |
Workstation, Web Client, Mobile Client |
Approvals |
CE, FCC, UL (for built-in power adapter) |
|
|
