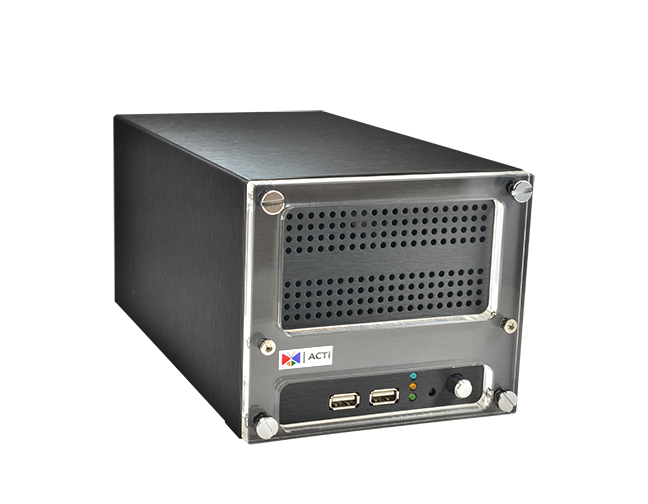

ENR-110 - 4-Channel Desktop Standalone NVR by ACTi
|
|
|
- 2-bay desktop
- Manage up to 4 cameras or video encoders
- Recording up to 4 channels
- Live view local up to 4 channels, remote up to 4 channels
- Support dewarping function with ACTi fisheye view technology
- Synchronized playback local up to 4 channels
- Built-in DHCP server
- Export video with RAW and AVI formats
- Event trigger, response and notification
- Mobile Client, Web Client
- 4-channel free license included
|
|
|
ENR-110 is
a
4-Channel 2-Bay Desktop Standalone NVR with Recording Throughput 16 Mbps, HDMI Port for 1080p Display, Remote Access, Video Export, 4-Channel Synchronized Playback, 4-channel free license included, Plug & Play with Built-in DHCP Server, 2-Bay (Without Storage Disks), DC 12V
Device |
ENR-110 |
Product Type |
Standalone NVR |
Maximum Resolution |
Local: up to 4MP; Remote: up to10MP |
Maximum Number of Cameras |
4 |
Maximum Number of Video devices |
4 |
Maximum Number of Clients |
Local: 1, Remote: 2 |
License |
|
License required |
No |
Free License |
4 |
Live View |
|
Display Layout Mode |
Local:1, 2, 4, Remote:1, 2, 4 |
Local Live View performance |
Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
Digital Zoom |
Yes |
Event Status |
Display event status upon alarm or upon connection loss or recovery between server and client |
Instant playback |
Instant Playback in live view window (Remote client) |
PTZ |
|
PTZ Control |
PTZ Control, Speed Control, 32 preset points |
Joystick |
USB based joystick supported |
Video |
|
Compression |
H.264 |
Audio |
|
Audio Compression |
PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (Server/Client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, SNTP, ICMP, ARP, SMTP, UPnP, To be available through future firmware upgrade |
Ethernet Port |
Total ports: 2 port(s)
(LAN 1)
Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector
(LAN 2)
Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
Security |
HTTPS encryption, Password protected user level |
Recording |
|
Scheduled Recording |
Yes |
Event Recording |
Yes |
Manual Recording |
Yes |
Event Speed-up Recording |
Yes |
Dual Stream Management |
Yes |
Maximum Recording Throughput |
16 Mbps |
Search & Playback |
|
Playback Control |
Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x, pause, stop |
Synchronized Playback |
4 channels |
Video Export |
AVI, RAW |
Event |
|
Event Trigger |
Video motion detection, External device through digital input, Network loss and recovery, |
Event Response |
Play alert sound, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Activate external device through digital output |
System |
|
Permission control |
Unlimited number of users, Customizable permissions for user groups |
Client PC Operating System |
Windows 7, Windows 8 |
Server Operating System |
Embedded Linux |
Mobile Client Program |
Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iPhone, iPad, iTouch, Android device |
USB |
2 port(s), USB 2.0 |
Language |
Multi-Language |
Integration |
|
Unified Solution |
Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
ONVIF Compliant |
Yes, Profile S |
Web Browser |
IE 9.0 or newer |
Interface |
|
Local Access |
HDMI monitor, USB keyboard & mouse, USB Joystick |
General |
|
Power Source |
DC 12V |
Weight |
1320g (2.91lb) |
Dimensions |
(W x H x D): 135mm x 121mm x 251mm (5.3" x 4.8" x 9.9") |
Bundled Accessories |
Power Adapter |
HDD Bay |
SATA, Max. 2 3.5" Disk(s) (Options to have empty bays, one 1TB or one 2TB storage disk included) |
Fan |
Yes |
Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity |
10% - 85% RH |
Remote Access |
Workstation, Web Client, Mobile Client |
Approvals |
CE, FCC, UL (for bundled power adapter) |
|
|
