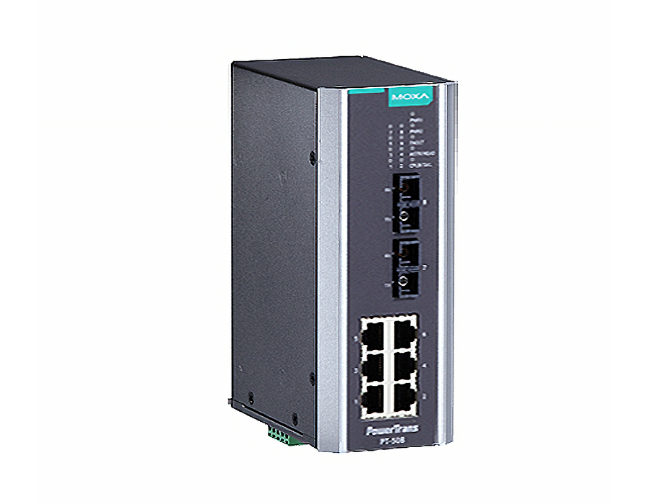

PT-508-MM-SC-48 - IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC conn
by MOXA
|
|
|
|
- Command Line Interface (CLI) for quickly configuring major managed functions
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- Software-based IEEE 1588v2 PTP (Precision Time Protocol) for precise time synchronization of networks
- VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
- DHCP Option 82 for IP address assignment with different policies
- EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
IEEE 802.3ad, LACP for optimum bandwidth utilization
Bandwidth management prevents unpredictable network status
Multi-port mirroring for online debugging
Automatic warning by exception through email, relay output
RMON for efficient network monitoring and proactive capability
Automatic recovery of connected device’s IP addresses
Line-swap fast recovery
Configurable by Web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
- User passwords with multiple levels of security protect against unauthorized configuration
- SSH/HTTPS is used to encrypt passwords and data
- Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
- Disable one or more ports to block network traffic
- 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
- Secure switch ports so that only specific devices and/or MAC addresses can access the ports
- Radius/TACACS+ allows you to manage passwords from a central location
- SNMPv3 provides encrypted authentication and access security
|
|
|
The PowerTrans PT-508/510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508/510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-Rail and wallmount design of the PT-508/510 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.
| • Technology |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1s for Multiple Spanning Tree Protocol |
| Protocols |
IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client |
| MIB |
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties |
| Priority Queues |
4 |
| Max. Number of Available VLANs |
64 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups |
256 |
| MAC Table Size |
8 K |
| Packet Buffer Size |
1 Mbit |
| • Interface |
| RJ45 Ports |
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Fiber Ports |
100BaseFX ports (SC/ST/LC/MTRJ connector) |
| Console Port |
RS-232 (RJ45) |
| LED Indicators |
PWR1, PWR2 (DC models only), FAULT, MSTR/HEAD, CPLR/TAIL |
| Alarm Contact |
1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Power Requirements |
| Input Voltage |
• 24 VDC (18 to 36 V)
• 48 VDC (36 to 72 V)
• 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC) |
| Input Current |
(all ports are equipped with fiber)
• Max. 0.286 A @ 24 VDC
• Max. 0.13 A @ 48 VDC
• Max. 0.091/0.046 A @ 110/220 VDC
• Max. 0.194/0.12 A@ 110/220 VAC |
| Overload Current Protection |
Present |
| Connection |
5-pin terminal blocks |
| Reverse Polarity Protection |
Present |
| • Physical Characteristics |
| Housing |
IP40 protection |
| Dimensions |
60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in) |
| Weight |
995 g |
| Installation |
DIN-Rail mounting, wall mounting (with optional kit) |
| • Environmental Limits |
| Operating Temperature |
-40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| Safety |
UL 508 (Pending) |
| EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
| Power Automation |
IEC 61850-3, IEEE 1613 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
|
|
