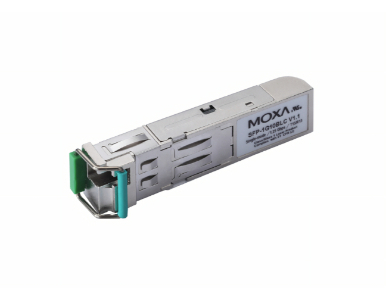

SFP-1G10BLC - Small Form Factor pluggable transceiver with 1000Base WDM,type B, LC connector, 10 km, 0 to 60 Degree C
by MOXA
|
|
|
|
- IEEE 802.3z compliant
- Differential LVPECL inputs and outputs
- TTL signal detect indicator
- Hot pluggable LC duplex connector
- Class 1 laser product, complies with EN 60825-1
|
|
|
Supported Moxa Products
The SFP-1G series modules can be used with the following products:
ICS-G7850A/G7852A series, ICS-G7750A/G7752A series, IM-G7000A-4GSFP, ICS-G7826A/G7828A series, ICS-G7526A/G7528A series, IKS-G6524A/G6824A series, IKS-6726A/6728A series, IM-2GSFP, EDS-611/619 series, EDS-G516E series, EDS-G512E series, EDS-G509 series, EDS-518A series, EDS-510A series, EDS-510E series, EDS-G308 series, EDS-210A series, IKS-6728A-8PoE series, EDS-P510A-8PoE series, EDS-P510 series, EDS-G205A-4PoE series, PM-7200-2G/4G series, PT-G7509 series, IMC-101G series, EDR-G903/G902 series, EDR-810 series
| • Interface |
| Ethernet Ports |
1 |
| Connectors |
Duplex LC Connector or Simplex LC Connector (WDM-type only) |
| Note |
WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC)
Note: When connecting long distance SFP (SFP-ZX, EZX or EZX-120), please ensure at least 5 dB attenuation between both ends. Without attenuation, excessive optical power may damage the transeivers. |
| • Optical Fiber |
| Table |
 |
| Note |
The actual communication distance depends on many factors, including connector loss, cable deployment, and the age of the cabling system. We recommend doing a link budget analysis and reserving a 3 dB margin for such factors. |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| Safety |
UL 60950-1, TÜV |
| Marine |
DNV, GL, LR, NK |
|
|
