TP-ESP-10G-POE_DESCRIPTION

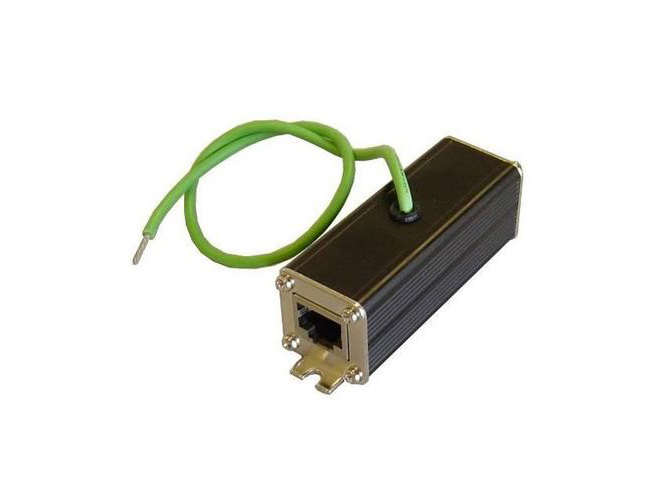

The TP-ESP-10G-POE are a high performance Ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They protect to an impressive 10KA and are compatible with up to 10Gbps Ethernet networks. The surge protectors are also compatible with IEEE8 02.3af/at/bt PoE standards.
They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. Incorporating a rugged design, t hey are perfect for indoor or outdoor use inside a weatherproof enclosure. The TP-ESP-10G-POE is compatible with 10/100/1 , 000M /10,000M POE systems up to 5 8 V and can also be used successfully in pure data systems without PoE . Common mode and Differential Mode Protection is provided on all 8 Ethernet wires .
A ground wire is included to tie into the user’s earth ground system. Surge protectors should be mounted as close to the protected equipment as is feasible. Tycon offers a small outdoor enclosure to weatherproof the surge protector. There is also a DIN rai l mounting kit available f or DIN rail mounting the surge protector.
