MRC Software Specifications |
• MRC Server Software |
Amazon AWS EC2 |
Supports Amazon AWS EC2 service (can be downloaded from the Amazon AWS Marketplace) |
Licensing |
Apply for an MRC Server License from Moxa's channels before activating your software portal |
• MRC Client Software |
Operating Systems |
Supports Windows-based computers running Windows 7/8/10 (32-bit or 64-bit) |
Note |
The MRC Client Software can be downloaded from Moxa's website. |

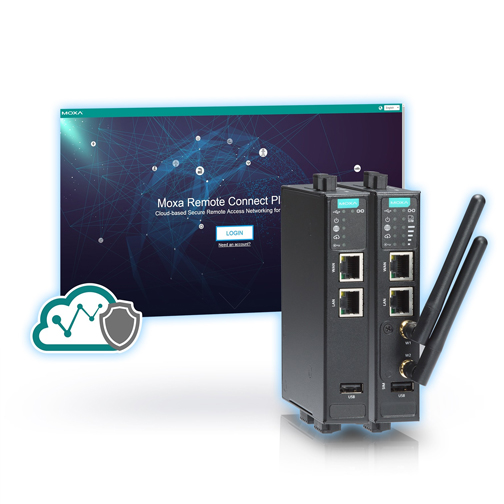

MRC Gateway Specifications |
• Interface |
RJ45 Ethernet Ports |
2, 10/100BaseT(X) auto negotiation speed |
USB Host Port |
USB 2.0 compliance |
LED Indicators |
USB, Power, Internet, Cloud, Key, Cellular Signal |
Digital Input |
• +13 to +30 V for state â1â; -30 to +3 V for state â0â
• Max. input current: 8 mA |
Relay Output |
• One relay output with current-carrying capacity of 1 A @ 24 VDC |
• Cellular Interface |
Cellular Port |
GSM/GPRS/EDGE/UMTS/HSPA/LTE |
Cellular Antenna Connectors |
2, SMA (female), MIMO for LTE, antenna diversity for WCDMA |
Band Options |
• B2 (1900 MHz) / B4 (AWS) / B5 (850 MHz) / B13 (700 MHz) / B17 (700 MHz) / B25 (1900 MHz)
• UMTS/HSPA 2100/1900/AWS/850/900 MHz
• Universal quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz |
LTE Data Rate |
• 20 MHz bandwidth: 100 Mbps DL, 50 Mbps UL
• 10 MHz bandwidth: 50 Mbps DL, 25 Mbps UL |
HSPA Data Rate |
42 Mbps DL, 5.76 Mbps UL (Category 24, 6) |
EDGE Data Rate |
237 kbps DL, 237 kbps UL (Class 10, 12) |
GPRS Data Rate |
85.6 kbps DL, 42.8 kbps UL |
• Power Requirements |
Input Voltage |
12 to 36 VDC (3-pin terminal block, V+, V-, SG) |
Input Current |
0.62 A (max.) @ 12 VDC |
Power Consumption |
7.44 W (with cellular module) |
• Physical Characteristics |
Housing |
Metal |
Dimensions |
101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
Weight |
MRC-1002-T: 425 g (0.94 lb)
MRC-1002-LTE-US-T: 470 g (1.04 lb) |
• Standards and Certifications |
Safety |
UL 61010-2-201 |
EMI |
FCC Part 15B Class A |
EMC |
EN 55032/24, EN 61000-6-2/6-4 |
EMS |
IEC 61000-4-2/3/4/5/6/8 |
Shock |
IEC 60068-2-27 |
Free Fall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
• MTBF (mean time between failures) |
Time |
MRC-1002-T: 954,531 hours
MRC-1002-LTE-US-T: 561,262 hours |
Standard |
Telcordia (Bellcore) Standard TR/SR |
