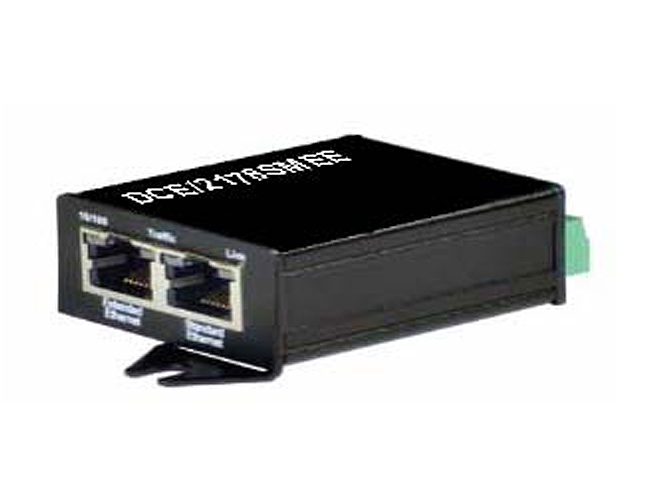

2178SMEE-C - SUPER MINI ETHERNET EXTENDER - COAX
by DATA-CONNECT

Data Connect 2178SMEE Super Mini Ethernet Extender is an excellent choice for Ethernet Extender applications where space and size are an issue. The DCE/2178SMEE offers new performance standards for the growing demand for high speed transmission of full bandwidth Ethernet and high-power PoE over extended distances on Twisted Pair or Coax. The 2178SMEE is designed to be integrated into existing products or to easily fit in standard 4 x 4 and J-Boxes, providing weatherproofing and compliance with fire and other environmental requirements. The symmetrical bandwidth assures full bandwidth transmission to be maintained over the entire operational distance for both uploads and downloads with virtually no packet loss.

The Data Connect 2178SMEE utilizes pass through PoE that eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. The 2178SMEE can pass through PoE power, up to 60W. Type tested under NEMA-TS2 environmental standards for extended temperature operation between -40°C to +75°C. The 2178SMEE is the perfect solution for extended distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more.

The Data Connect 2178SMEE is Low Voltage and can easily fit inside most cameras housing and junction boxes. Best of all, it is type tested to network packet performance standards, and major camera brand compatibility tested to assure you error free and reliable. Installation cost savings, proven performance, and major camera brand compatibility all go into making the 2178SMEE’s the best choice for extended distance data and power transmission.

Electrical

• Ethernet Interface: Standard 10/100BaseT
• Data Rate: Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distance
• Twisted Pair: 100 Ohm +/- 20%, Cat5 or better
• 10BaseT: up to 3,000 ft. (914 m)
• 100BaseT: up to 2,100 ft. (640 m)
• Power Supply: 12 VDC, 1.8 W with POE AF/AT & 1.5 W with external power supply
• Status LEDs: Power On
• Standard Ethernet: Traffic, Link
• Extended Ethernet: Traffic, 10/100BaseT
• Connectors: Ethernet Interface: RJ-45 Connector
• Extended Interface: RJ-45 Connector
• Power: 2-pin Terminal Block
• RFC: 2544 TCP/IP Packet Transmission
• Compatible with: IEEE 802.3af PoE, IEEE 802.3at PoE
• RFC: 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet
• PoE Compatibility: IEEE 802.3af, IEEE 802.3at
• Jumbo Frame Support: Yes

Regulatory

• FCC: Part 15, Sub
• Emissions: EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003
• Safety: CE
• Environmental: RoHS

Environmental

• Humidity: 0 to 95%, non-condensing
• Temperature: Operating: -40°C to +75°C per NEMA-TS2 testing
• Storage: -40°C to +85°C

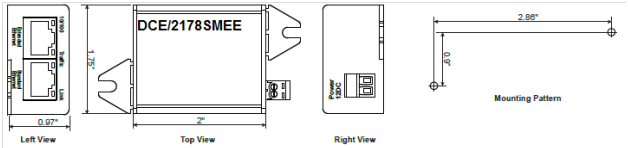

Mechanical

• Dimensions: 0.97×1.75×2 in., 2.5×4.4×5 cm (H x W x L)
• Weight: 0.15 lb, 67 g
• Material: Extruded Aluminum

Accessories

• 12 VDC wall-mount power supply (optional)
