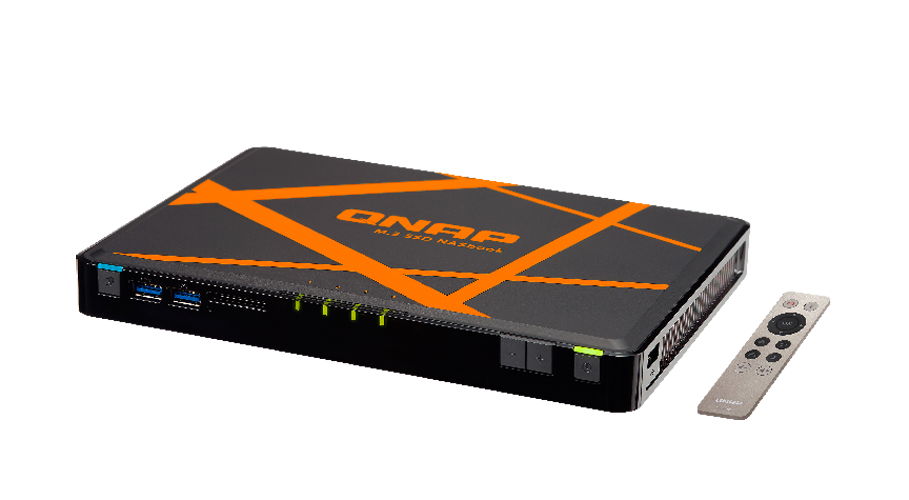

TBS-453A-4G-US - 4-Bay M.2 SSD NASbook with built-in 4 port LAN switch (4GB version) by QNAP
|
|
|
- Built-in 4-port LAN switch, combined with advanced virtual switch functionality for maximized network flexibility
- Dual HDMI output with duplicated and extended desktop options
- Use the TBS-453A as a PC with exclusive QvPC Technology and 4K (H.264) support
- Supports Linux® OS with direct output via HDMI
- Store, backup, and share files with snapshots and versioning
- Wide range 10V ~ 20V DC power input
- Expand the total raw storage capacity with a UX-800P/UX-500P expansion enclosure
- Build a karaoke system with the OceanKTV app
Mfg SKU # : | TBS-453A-4G-US |
|
|
|
Compact, near-silent, and versatile, the 4-bay M.2 SSD NASbook TBS-453A is ideal for office meetings and multimedia applications. Featuring a quad-core Intel® 1.6GHz processor, a built-in 4-port network switch, and using up to 4 M.2 SSDs for storage, the TBS-453A not only provides full-fledged NAS functions with RAID protection, but also can act as a switch and share network access with multiple users regardless of being powered on or off. Coupled with its dual HDMI output and 4K H.264 video display & transcoding abilities, the TBS-453A can easily be carried to meetings to present stored files and quality multimedia content. The TBS-453A also supports the open-source Linux® platform that allows you to directly utilize feature-rich Linux® apps, enjoying a private cloud combining storage and IoT applications.
Operating System |
QTS 4.2 (embedded Linux) |
|
Power Management |
- Wake on LAN
- Internal hard drive standby mode
- Scheduled power on/off
- Automatic power on after power recovery
- USB and network UPS support with SNMP management
- System sleep mode (S3)
|
|
Supported Client OS |
- Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows Server 2003/2008 R2/2012/2012R2
- Apple Mac OS X
- Linux & UNIX
|
|
Access Right Management |
- Batch users creation
- Import/Export users
- User quota management
- Local user access control for CIFS, AFP, FTP, and WebDAV
- Application access control for Photo Station, Music Station, Video Station, and File Station
- Subfolder permissions support for CIFS/SMB 3.0, AFP, FTP, and File Station
|
|
Supported Browsers |
- Microsoft Internet Explorer 10+
- Mozilla Firefox 8+
- Apple Safari 4+
- Google Chrome
|
|
Domain Authentication Integration |
- Microsoft Active Directory (AD) & Domain Controller support
- LDAP server, LDAP client
- Domain users login via CIFS/SMB 3.0, AFP, FTP, and File Station
|
|
Multilingual Support |
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
|
myQNAPcloud Service |
- Private cloud storage and sharing
- Free host name registration (DDNS)
- Optional myQNAPcloud SSL certificates (DDNS)
- Auto router configuration (via UPnP)
- Web-based file manager with HTTPS 2048-bit encryption
- CloudLink for remote access without any complicated router setup
- myQNAPcloud connect for easy VPN connection (Windows VPN utility)
|
|
File System |
- Internal Hard Drive: EXT4
- External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
|
|
Qsync |
- Sync files across multiple devices with SSL secure connection
- Selective synchronization for only syncing specific folders
- Use team folders as a file center for greater team collaboration (maximum sync tasks: 32)
- Shares files by links via e-mail
- Policy settings for conflicting files and file type filter support
- Version control: up to 64 versions.
- Unified configuration management
- Supports remote erase/restore
- Supports Windows & Mac OS
|
|
Networking |
- TCP/IP (IPv4 & IPv6: Dual Stack)1
- Gigabit NICs with jumbo frame
- Port trunking & failover are not supported.
- Only LAN port #1 supports jumbo frame.
- Built-in hardware network switch with switch mode and private network mode support
- Service binding based on network interfaces
- Squid Proxy server
- Proxy client
- DHCP client, DHCP server
- Protocols: CIFS/SMB 3.0, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour Discovery
- USB Wi-Fi Adapter Support
|
|
Web Administration |
- Multi-window, multi-tasking based system management
- Smart toolbar and dashboard for neat system status display
- Resource monitor
- Network recycle bin for file deletion via CIFS/SMB 3.0, AFP, and File Station
- Automatic Cleanup
- File Type Filter
- Comprehensive logs (events & connection)
- Syslog client/server
- System settings backup and restore
- Mobile app: Qmanager for remote system monitoring & management
|
|
Security |
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB 3.0, AFP
- CIFS host access control for shared folders
- FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption2
- AES 256-bit external drive encryption2
- Importable SSL certificates
- Instant alerts via email, SMS, beep, push service, and LCD panel3
- 2-step verification
|
|
File Server |
- File sharing across Windows, Mac, and Linux/UNIX
- Windows ACL
- Advanced folder permissions for CIFS/SMB 3.0, AFP, FTP
- Shared folder aggregation (CIFS/SMB 3.0)
|
|
Storage Management |
- Storage Space Utilization monitoring
- QNAP flexible Volume/LUN with thin provisioning and space reclamation3
- Disk volume types: RAID 0, 1, 5, 6, 10, 5 + hot spare, JBOD, single
- Supports storage pools
- Supports volume/LUN snapshots
- Snapshot clone, vault, replica
- Snapshot agent for Microsoft Windows and VMware vSphere
- Online volume expansion
- Online storage pool expansion
- Online RAID capacity expansion and online RAID level migration
- SMART data migration
- Storage expansion via a QNAP UX-500P/UX-800P expansion unit
- JBOD enclosure roaming
- SSD read-only/read-write cache
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery & RAID recovery
- Bitmap support
|
|
|
Powerful All-in-one server |
FTP Server |
- FTP over SSL/TLS (Explicit)
- FXP support
|
|
Qsirch |
- Supports full-text search & near real-time search
- Bar chart to show data distribution
- Supports previews for photos, music, videos, Gmail, PDF .etc
- Show search results using thumbnails or a list
- Supports search Chrome extension
|
|
File Station |
- Supports mounting cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Amazon Drive, Yandex Disk and Box).
- Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (CIFS/SMB 3.0)
- Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)
- Supports ISO Mounting (Up to 256 ISO Files)
- Supports sharing download links and upload links
- Drag-n-drop Files via Chrome and Firefox Browsers
- Photo, music, and video preview and playback with hardware-accelerated transcoding
- File Compression (ZIP or 7z)
- Creation of and sending download links for sharing public files with expiration date and password protection
- Supports displaying subtitles (*.SRT, UTF-8 format)
- Mobile App: Qfile for file browsing and management
|
|
Storage Plug & Connect |
- Creating and mapping shared folders by QNAP Windows Qfinder Pro
- Creation of and connection to iSCSI target/LUN
|
|
Transcode Management |
- Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution
- Automatic video transcoding for watched folders
- Hardware accelerated transcoding support
- Embed subtitles into videos for background transcoding
|
|
iSCSI (IP SAN) |
- iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
- Supports LUN mapping & masking
- Online LUN capacity expansion
- Supports MPIO & MC/S
- iSCSI LUN backup, one-time snapshot, and restoration
- iSCSI connection and management by QNAP Windows Qfinder Pro
- Virtual disk drive (via iSCSI initiator)
- Stack chaining master
- Max No. of virtual disk drives: 8
|
|
Backup Station |
- Remote replication server (over rsync)
- Real-time remote replication (RTRR) to another QNAP NAS or FTP server
- Works as both RTRR server & client with bandwidth control
- Real-time & scheduled backup
- Backup versioning for RTRR
- Snapshot support for RTRR/Rsync
- Encryption, compression, file filter, and transfer rate limitation
- Desktop backup with QNAP NetBak Replicator for Windows
- Apple Time Machine backup support
- Data backup to multiple external storage devices
- Synchronizes with cloud storage: Amazon S3, ElephantDrive, Dropbox, and Google Drive
- Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
|
|
Surveillance Station |
- Supports over 3,000 IP cameras
- Includes 4 free camera licenses, up to 40 camera channels by purchasing additional licenses3
- Instant playback to check recent events
- Visual aid by e-map
- Playback and speed control using the shuttle bar
- Video preview on playback timeline
- Intelligent video analytics (IVA) for advanced video searching
- Surveillance client for Mac
- Mobile surveillance app: Vmobile (iOS and Android)
- Mobile recording app: Vcam (iOS and Android)
|
|
Print Server |
- Max number of printers: 3
- Supports Internet Printing Protocol
- Print job display and management
- IP-based and domain name-based privilege control
|
|
VPN Server |
- Secure remote access: PPTP, L2TP/IPsec& OpenVPN VPN services
- Max number of clients: 30
|
|
Cloud Backup Station |
- Amazon S3
- Amazon Glacier
- WebDAV-based cloud storage
- Microsoft Azure
- OpenStack
|
|
VPN Client |
- Supported VPN protocols: PPTP & OpenVPN services
- PPTP Authentication: PAP, CHAP, MS-CHAP, MSCHAPv2
- PPTP Encryption: None, AES 40/128 bit, AES 256 bit
- OpenVPN Encryption: None, AES 40/128 bit, AES 256 bit
- Transmission package monitor
- OpenVPN port control
- OpenVPN link compression
|
|
AirPlay & Chromecast |
Streams videos, photos and music from NAS to Apple TV or Chromecast via File Station, Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic, Qphoto or Qvideo).
Note: The Media Streaming add-on app must be installed from the QTS App Center. |
|
DLNA Server |
- Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
- Supported audio formats4: AIFF, APE, DSD (DSF, DFF), FLAC, M4A, M4A Apple Lossless (ALAC), MP3, Ogg Vorbis, WAV (PCM, LPCM), WMA, WMA PRO, WMA VBR
- Support CUE indexing file for APE, FLAC audio format.
- Video and Audio On-the-fly Transcoding
|
|
HD (HybridDesk) Station 3.1 |
- Watch various online contents
- Web browsers (Chrome, Firefox)
- Supports international keyboards, input and mouse
- Supports user login permissions
- A variety of applications are available including Skype, Plex Home Theater, and more
- Up to 7.1 channel audio passthrough is supported
Note:
- The playback and quality of some video files may be affected by the system's CPU and GPU decoding abilities. |
|
Q'center (NAS CMS) |
- Multiple NAS monitoring
- Utilization history reports
- Unified configuration management
- Visual display reports
- Monitor NAS behind NAT routers with Q'center Assistant
- Virtual appliances supported by Microsoft Hyper-V and VMware ESXi
|
|
Linux Station |
- Use your NAS as a Linux Desktop using the NAS HDMI output
- Supports remote desktop to monitor and access remotely
- An open source software platform for developers
|
|
OceanKTV |
- Use the NAS as a karaoke machine.
- Display songs by artists, languages, and favorites.
- Enhance the experience with effects such as tuning echo, key, or applause
- Control the playlist with a mobile app.
- Supports keyboard, mouse and remote control (RMRF001/ RM-IR002).
Note: Microphone not included. |
|
Virtualization Station |
- Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android
- Supports VM import and export
- Supports VM cloning & snapshots
- Supports VM backup and restore
- VM console can be displayed via HDMI output - QVM
- HTML5-based shared remote console
- Supports three different networking modes: Isolated, External-only and Bridged
|
|
iTunes Server |
Audio and video sharing for Windows & Mac iTunes |
|
Container Station |
- Supports LXC and Docker
- Download applications from the built-in Docker Hub Registry
- Supports one-click installation, container export/ import & console mode
- Supports auto port forwarding
- Supports auto-start containers
- Supports downloading Docker certificates
|
|
App Center |
Over 100 official and community software add-ons such as Photo Station, Music Station, Video Station, Download Station, Notes Station, Signage Station |
|
1 Not all IPv6 services are supported.
2 Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.
3 This feature may vary by model.
4 DRM-protected content is not supported.
Designs and specifications are subject to change without notice. |
Ordering P/N |
TBS-453A-4G |
Processor |
14nm Intel® Celeron® N3150 quad-core 1.6GHz, burst up to 2.08GHz |
Floating Point Unit |
✔ |
Hardware Encryption Acceleration |
✔ (AES-NI) |
GPU |
8th generation Intel HD Graphics |
System Memory |
4GB (2 x 2GB) |
Maximum Memory |
8GB |
Memory Slot |
2, SODIMM DDR3L-1600 (*For dual-DIMM configurations, you must use a pair of identical DDR3L RAM modules.) |
Flash |
4GB |
Drive Type |
4 x M.2 2280/2260/2242 SATA 6Gb/s SSDs |
Pre-installed M.2 SSDs |
- |
Raw Capacity |
Optional purchase |
Default Capacity (Factory Configuration) |
Optional purchase |
Network |
5 x Gigabit LAN ports (Port 1 and any of the four ports from 2-1 to 2-4 are available to the 2 built-in network cards, and the remaining three ports can work as switch ports.) |
USB Port |
4 x USB 3.0 & 1 x USB 2.0 ports
Support USB printer, pen drive, and USB UPS, etc. |
Video Output |
2 x HDMI, up to 4K 2160P 30Hz Ultra HD support |
Audio Input |
2 x 3.5mm microphone jack (dynamic microphone only) |
Audio Output |
1 x built-in speaker, 1 x line out jack (for amplifier or headphone amplifier) |
LED |
Status/Power, USB, SSD 1-4 |
Button |
Power, USB one-touch-backup, Reset, Volume Up, Volume Down |
IR Receiver |
✔, support QNAP RM-IR002, RM-IR003 and MCE-compatible Remote Control(DM) |
Security |
Kensington security slot |
Dimension (HxWxD) |
25 x 230 x 165 mm / 0.98 x 9.06 x 6.50 inch |
Weight |
724g / 1.60lbs. |
Power Consumption (W) |
System sleep mode: 0.98W
SSD standby: 13.05W
In operation: 15.2W |
Sound Level** |
Sound pressure (LpAm) :10.8 dB(A) |
Working Temperature |
0-40˚C |
Relative Humidity |
5~95% RH non-condensing, wet bulb: 27˚C |
Power |
DC10V-20V wide input range |
Fan |
Compact internal fan |
Package Contents |
NASbook, 65W 19V AC adapter, power cord, quick installation guide, Ethernet cable x 2, remote control, SSD installation kit |
1. |
Button for USB One Touch Copy |
10. |
HDMI 2 |
2. |
USB 3.0 (One Touch Copy) |
11. |
HDMI 1 |
3. |
USB 3.0 |
12. |
USB 3.0 |
4. |
SD Card Reader |
13. |
Line Out, MIC In 1 & 2 |
5. |
SSD 1 - 4 |
14. |
LAN Port 2-1, 2-2, 2-3, 2-4 |
6. |
Volume Down |
15. |
LAN Port 1 |
7. |
Volume Up |
16. |
DC Input 10V-20V |
8. |
Power Button / Status LED |
17. |
USB 2.0 |
9. |
Kensington Lock |
18. |
Speaker |
*The SSD's available capacity may vary depending on whether over-provisioning is applied by the SSD manufacturer.
** Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
|
|
