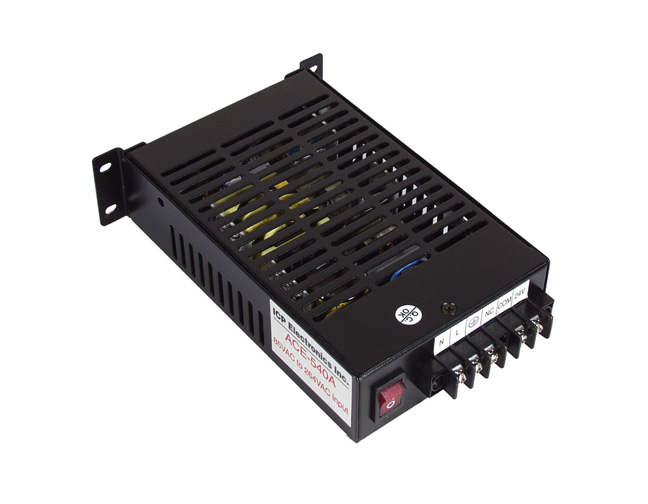

24 Volt / 2 Amp Panel Mount Power Supply
- Input Range : 85V-26AC
- Input Frequency : 47Hz to 63 Hz
- Input Current : less than 1A at 115VAC or 0.6A at 230V
- Inrush Current : not exceed 30A at 115VAC or 60A at 230V
- Output : 24VDC/2A max.
- Ripple /Noise : Pk to Peak less than 240mV
- Line Regulation : less than +/-1% by changing the output load +/-40% from 60% rated load
- Load Regulation : less than +/-1% by changing the output load +/-40% from 60% rated load
- Efficiency : higher than 7
- Hold-up Time : 20ms (typ.) at 115V
- Protection: Over Voltage Protection .
- Trip point: 26.2V to 31V
- Operating Temperature : -20°C to 70°C
- Storage Temperature : -40°C to 85°C
- Altitude : 0 - 10,000
- MTBF : 396,220 Hrs
- Power ON/OFF switch included
- Safe UL 1950, CSA 22.2 No. VDE EN 60 950
- EMI : FCC docket 20780 curvB,EN55022
- EMS : EN-50082
- IEC 801-2,8KV (air discharge) criteria B
- IEC 801-3,3V/M criteria B
- IEC 801-4,2KV (air discharge) criteria B
- IEC 801-5,2KV (air discharge) criteria B
- Dimensions : 198mm x 97mm x 40.5mm
- Din Rail Mount
|
