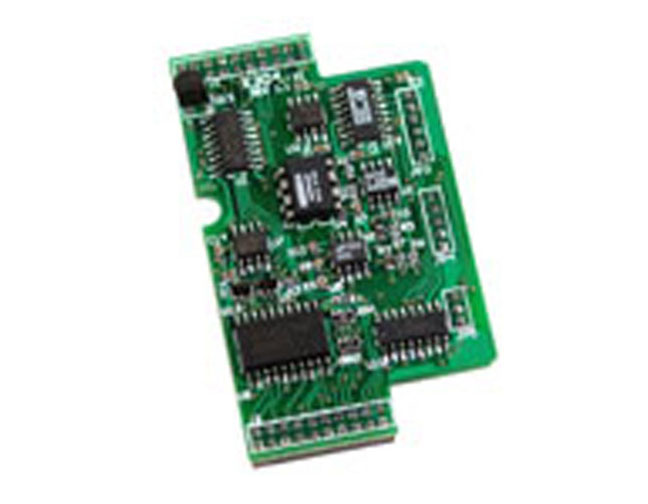

X304 - 3 analong inputs, 1 analog output, 4 digital inputs and 4 digital outputs
by ICP DAS
|
|
|
|
3 Channel A/D (±5V), 1 Channel D/A (±5V), 4 Channel D/I, and 4 Channel D/O module
|
|
|
For use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
Analog Input
- Channel : 3
- Resolution : 12-bit
- Input Range/Type : +/- 5 V
- Sampling rate :1800 Hz
- Isolated : none
Analog Output
- Channel : 1
- Resolution : 12-bit
- Input Range/Type : +/-5 V
- Sampling rate :1300 Hz
- Isolated : none
Digital Input
- Channels : 4
- Input Voltage:
Logic high level (3.5V ~ 30V)
Logic low level (0V ~ 1V)
- Isolated : none
Digital Output
- Channels: 4
- Open-collector Output : 100 mA / 30V max
- Isolated : none
Power Consumption: 0.9W
|
|
