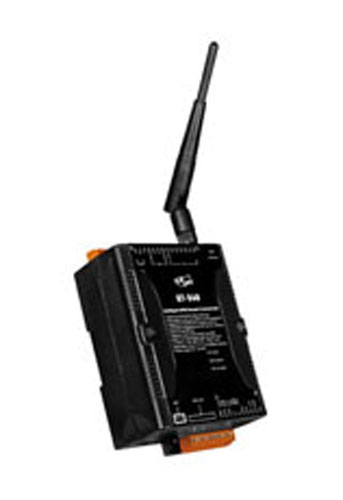

GT-541 is an intelligent multiport serial to GPRS gateway for industry M2M applications. It is designed for linking RS-232/485 devices to a GPRS network. The user-friendly VxComm Driver/Utility and VxServer allow users to easily turn the built-in COM ports of the GT-541 into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the GT-541 is able to meet the demands of every network-enabled application. M2M solution will improve the service quality and reduce operating costs. Many application areas can be improved by using GT-541.
Application
Features
- Quad-band 2G Modem Operating of 850/900/1800/1900 MHz
- Virtual COM Extend Real COM Ports via GPRS
- Remote Configuration by Virtual COM
- 1 x RS-232 port and 1 x RS-485 port for Virtual COM. 1 x Utility port for Configuration
- Built-in Watch-dog Function
- Power Reverse Polarity Protection
- Power supply +10 VDC ~ +30 VDC
- DIN-Rail mountable
| System |
| CPU |
ARM Microprocessor |
| SRAM |
32 Kbytes |
| Flash Memory |
512 Kbytes |
| WDT(watchdog) |
Yes |
| 2G system |
| Frequency Band |
Quad-band: 850/900/1800/1900 MHz |
| Compliant with GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz) |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| Serial ports |
| Utility port |
RS-232: TxD, RxD, GND (use for device configuration and debug) |
| COM1 |
RS-232: TxD, RxD, GND (use for communication with other devices) |
| COM2 |
RS-485: D+, D- (use for communication with other devices) |
| Baud Rate |
RS-232 : TxD,RxD,GND for communication with other devices |
| Power |
| Protection |
Reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Required Supply Voltage |
+10 VDC ~ +30 VDC |
| Mechanical |
| Casing |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions (W x L x H) |
91 mm x 132 mm x 52 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
|
