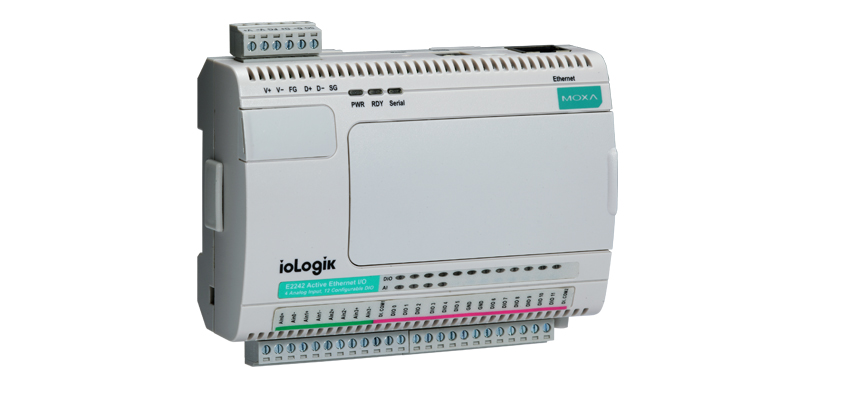

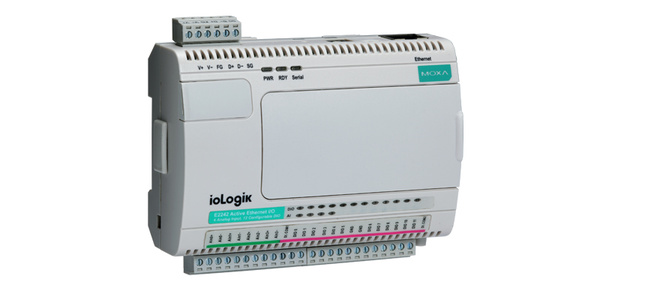

ioLogik E2260 - Active Ethernet I/O Server, 6RTD/4DO by MOXA
|
|
|
- Active communication with patented Active OPC Server
- Smart Alarm management with email, SNMP Trap, TCP, UDP
- Supports SNMPv1/v2c/v3 protocol
- Save time and wiring costs with peer-to-peer communication
- Front-end intelligent with patented Click&Go control logic, up to 24 rules
- Friendly configuration with web browser
|
|
|
Introduction
Moxa’s ioLogik E2200 is a new type of Ethernet micro RTU controller, which is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices. Unlike traditional RTUs, which are passive and must poll for data, Moxa’s ioLogik E2200 series with Active OPC Server makes seamless connection with SCADA systems a reality. In addition, SNMP is used for communicating with an NMS (Network Management System) for IT field users. The I/O status of an Ethernet micro RTU controller can be reported and controlled automatically on-site based on user specified conditions. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.
Active Alarming with Local Intelligence
The ioLogik E2200 Micro RTU supports simple and powerful Click&Go™ technology to deliver event-driven reports and allow alarm messages to be sent by email, TCP/UDP, and SMNP Trap with real-time stamps. With built-in Click&Go™ intelligence, the ioLogik E2200 micro RTU can be used for simple output control when it is triggered by input status, without the need for a PC controller. The ioLogik E2200 micro RTU reports I/O status automatically based on user-specified conditions. This report by-exception approach requires far less bandwidth than the traditional polling approach.
ioLogik E2260 Specifications |
• Inputs and Outputs |
RTD Inputs |
6 channels |
Digital Outputs |
4 channels |
Isolation |
3k VDC or 2k Vrms |
• RTD Inputs |
Input Type |
PT50, PT100, PT200, PT500, PT1000; JPT100, JPT200, JPT500, JPT1000; NI100, NI120, NI200, NI500, NI1000; Resistance of 310, 620, 1250, and 2200 ohms |
Input connection |
2 or 3 wire |
Sampling Rate |
12 samples/sec (all channels) |
Resolution |
0.1°C or 0.1 ohm |
Accuracy |
±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C |
Input Impedance |
625k ohms |
• Digital Output |
Type |
Sink |
I/O Mode |
DO or Pulse Output |
Pulse Output Frequency |
100 Hz |
Over-voltage Protection |
45 VDC |
Over-current Protection |
2.6 A (4 channels @ 650 mA) |
Over-temperature Shutdown |
175°C |
Current Rating |
200 mA per channel |
• Power Requirements |
Power Consumption |
95 mA @ 24 VDC |
• MTBF (mean time between failures) |
Time |
327,282 hrs |
Database |
Telcordia (Bellcore) |
Common Specifications |
• LAN |
Ethernet |
1 10/100 Mbps RJ45 port |
Protection |
1.5 kV magnetic isolation |
Protocols |
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP |
• Serial Communication |
Interface |
RS-485-2w: Data+, Data-, GND (3-contact terminal block) |
Serial Line Protection |
15 kV ESD for all signals |
• Serial Communication Parameters |
Parity |
None |
Data Bits |
8 |
Stop Bits |
1 |
Flow Control |
None |
Baudrate |
1200 to 115200 bps |
Protocol |
Modbus/RTU |
• Power Requirements |
Power Input |
24 VDC nominal, 12 to 36 VDC |
• Physical Characteristics |
Wiring |
I/O cable max. 14 AWG |
Dimensions |
115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
Weight |
under 250 g |
Mounting |
DIN rail or wall |
• Environmental Limits |
Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
Up to 2000 m |
Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
• Standards and Certifications |
Safety |
UL 508 |
EMI |
EN 61000-3-2; EN 61000-3-3; EN 61000-6-4;
FCC Part 15, Subpart B, Class A |
EMS |
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
EN 61000-4-11, EN 61000-6-2 |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
Green Product |
RoHS, CRoHS, WEEE |
Note |
Please check Moxa’s website for the most up-to-date certification status. |
|
|
|
|
