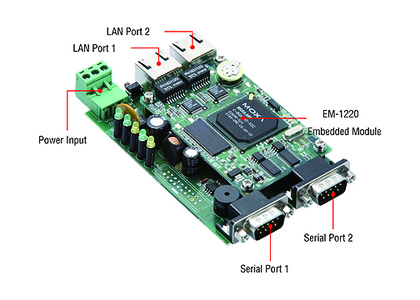

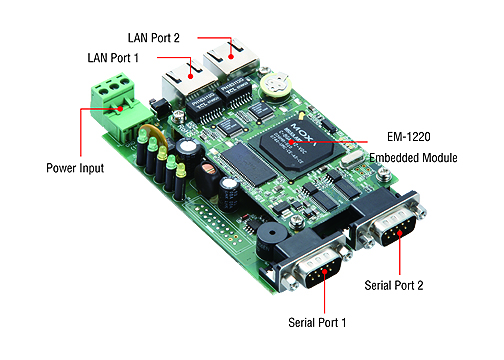

EM-1220-LX Development Kit - EM-1220-LX Development Kit, UK Plug
by MOXA
|
|
|
|
- MOXA ART ARM9 32-bit 192 MHz processor
- 16 MB RAM, 8 MB flash disk on-board
- 2 software-selectable RS-232/422/485 serial ports
- Dual 10/100 Mbps Ethernet for network redundancy
- Ready-to-run μClinux Kernel 2.6 platform
- SD signals supported for external SD socket connection
- Built-in RTC, buzzer
- 10 GPIOs reserved for system integration
Credit card size design for easy integration at any field site
Full-function development kit for quick evaluation and application development
-40 to 75°C wide temperature model available
|
|
|
The EM-1220 embedded module features 2 RS-232/422/485 serial ports, dual Ethernet ports, and an SD socket for external storage expansion. The module has a compact design that can be easily integrated with industrial applications, such as gas stations, vending machines, and ticketing machines, and offers a powerful serial communication capability for better system integration. Programmers will find that the pre-installed, ready-to-run μClinux platform and the full-function development kit make it easy to develop software and build a reliable communication base for industrial automation applications. In addition, the “wide temperature” EM-1220-T model is also available to provide a reliable solution for any harsh environment.
| Hardware Specifications |
| • Computer |
| CPU |
MOXA ART ARM9 32-bit 192 MHz processor |
| OS (pre-installed) |
Embedded μClinux (kernel 2.6.19) |
| DRAM |
16 MB onboard |
| Flash |
8 MB onboard |
| • Storage |
| Storage Expansion |
SD signals for external Secure Digital (SD) socket connection |
| • Ethernet Interface |
| LAN |
2 auto-sensing 10/100 Mbps ports (RJ45) |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Serial Standards |
RS-232/422/485, software-selectable, 2 ports |
| ESD Protection |
15 kV for all signals |
| Console Port |
TTL signal, 4-pin pin header output |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 kbps (supports non-standard baudrates; see user’s manual for details) |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • LEDs |
| System |
Ready |
| LAN |
10M/Link x 2, 100M/Link x 2 |
| Serial |
TxD x 2, RxD x 2 |
| • Physical Characteristics |
| Weight |
• EM-1220 Module: 40 g
• EM-1220 Development Kit: 120 g |
| Dimensions |
• EM-1220 Module: 80 x 50 mm (3.15 x 1.97 in)
• EM-1220 Development Kit: 117 x 70 mm (4.61 x 2.76 in) |
| Module Interface |
Two 2 x 17 pin-headers (2.5 x 2.5 mm pitch) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
Standard Models: -20 to 80°C (-4 to 176°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements |
| Input Voltage |
3.3 VDC |
| Power Consumption |
2.1 W (625 mA @ 3.3 VDC) |
| • Standards and Certifications |
| EMC |
EN 55022 Class A, EN 61000-3-2 Class A, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
405,735 hrs |
| • Warranty |
| Warranty Period |
5 years |
| Note |
The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adaptor and cables. |
| Software Specifications |
| • μClinux |
| OS |
μClinux 2.6.19 |
| File System |
JFFS2 |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv1, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SMTP, Telnet, FTP, TFTP, PPP, PPPoE |
| Web Server (boa) |
Allows you to create and manage web sites |
| Terminal Server (Telnet) |
Provides telnet communications between two hosts over the network |
| Dial-up Networking |
PPP Daemon for Linux allows Unix machines to connect to the internet through dialup lines, using the PPP protocol, as a PPP server or client. Works with ‘chat’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell) |
| Application Development Software |
• Moxa API Library (Watchdog timer, Moxa serial I/O control)
• arm-elf-gcc: C/C++ cross-compiler
• μClibc: POSIX standard C library |
|
|
|
|
