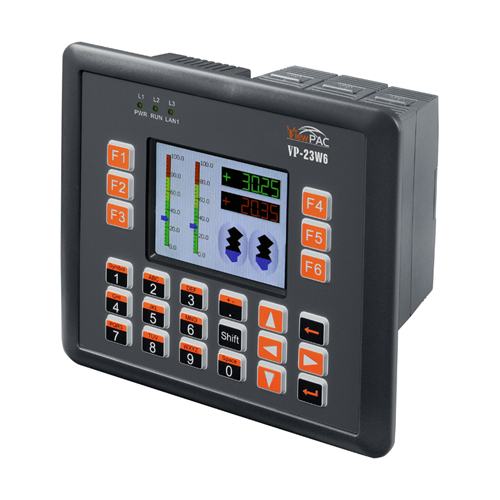

VP-23W6-EN - 300 tags Indusoft and ISaGRAF version of VP-23W1
by ICP DAS
|
|
|
|
InduSoft and ISaGRAF based ViewPAC with 3.5” LCD with MiniOS7. Ingress Protection - Front panel: IP65.
|
|
|
Features
ViewPAC-23W6/ViewPAC-25W6 is the new generation WinCE based PAC from ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7” TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. The VP-23W6/VP-25W6 also features with the powerful InduSoft Web Studio and ISaGRAF. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) andSupervisory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages(LD, ST, FBD, SFC, FC).
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Hardware Features
- PXA 270 CPU (32-bit & 520MHz)
- IP44 Compliant Front Panel
- Rubber Keypad with 24/6 Keys
- Audio with MIC-In and Line-Out
- 64-bit Hardware Serial Number for Software Protection
- 3 Slots for High Profile I/O Modules
- Rich I/O Expansion Ability (Ethernet, RS-232/422/485, FRnet, CAN bus)
- Dual Battery Backup SRAM (512 KB)
- Built-in one Ethernet Port, 2 Serial Ports (RS-232 & RS-485)
- Operating Temperature: -20 ~ +70 °C
Software Features
- ViewPAC-2xW6 Software Features
- Windows CE.NET 5.0
- Runtime InduSoft and ISaGRAF is ready
- Remote Maintenance via FTP Server and VCEP software
- Built-in OPC Server (Quicker)
- Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)
InduSoft Web Studio General Features
IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.
- Intuitive script language with more than 100 standard functions is provided.
- Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML.
- Full-Featured WinCE-based run-time environment (CE View).
- Dynamic library of symbols - customizable.
- ActiveX container (Windows NT/2000/XP/CE).
- Automatic e-mail (SMTP) and dial-up connection interface supported.
- Provide multi-level security for applications, including the Internet and Intranet.
ISaGRAF General Features
- Support five IEC61131-3 languages, LD,ST, FBD, SFC, IL plus FC.
- Modbus RTU/TCP protocol to integrate to SCADA software and HMI
- Controller to Controller Data Exchange via Ethernet: Ebus.
- All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC.
Applications
Environment monitoring, factory automation, building management system, industrial machine control, etc.
| System Software |
| OS |
Windows CE.NET 5.0 |
| .Net Compact Framework |
2.0 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 3 |
| ISaGRAF Software |
ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Others |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| SRAM |
128 MB |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain) |
| Flash |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| Expansion Flash Memory |
microSD socket with one 1 GB microSD card (support up to 16 GB microSDHC card) |
| RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| Communication Interface |
| Ethernet |
RJ-45 x 1, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (host) |
1 |
| COM0 |
Internal communication with I-87K modules in slots |
| COM2 |
RS-485 (D2+, D2-); self-tuner ASIC inside; 2500VDC Isolated. 2500 VDC |
| COM3 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
| MMI (Man Machine Interface) |
| LCD |
3.5” TFT (Resolution 320 x 240) |
| Touch Panel |
- |
| Rubber Keypad |
24 Keys |
| Audio |
Microphone-In and Earphone-Out |
| LED Indicators |
3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) |
| I/O expansion slots |
| Slot Number |
3 (For High Profile I-8K and I-87K Modules Only) |
| Hot Swap * Will be available |
For High Profile I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
182 mm x 158 mm x 125 mm |
| Ingress Protection |
Front panel: IP65 |
| Environmental |
| Operating Temperature |
-20 ~ +70°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10V ~ +30VDC |
| Isolation |
1KV |
| Capacity |
2.5A, 5V supply to I/O expansion slots |
| Consumption |
7.2 W (0.3 A @ 24 VDC) |
|
|
